 ICS Village Badge for Defcon 33 with AI power


Explore Industrial Control Systems (ICS) security with hands-on hardware and sensors. Features include gas & alcohol sensors, Wi-Fi (ESP32-C6), XYZ position, and RTC. Control via WASM scripting, USB API, or the FREE-WILi GUI — no setup needed. Designed with a full-color PCB by Detroit artist Kyle Irving for style and function.

  Product Overview

Dive deep into Industrial Control Systems security with the ICS Village Badge, building on last year’s FREE-WILi Whale Tail! While the Whale Tail explored digital protocols, this year’s badge expands into physical and environmental exploitation. Get hands-on with a gas sensor, alcohol sensor, ESP32 WiFi, XYZ Position sensor, and Infrared Receive/Transmit. Interact via a full-color screen with buttons, and LEDs, plus speaker. A Real Time Clock ensures precision, and SAO Connectors offer expansion, all on a stunning full-color PCB by local Detroit artist Kyle Irving. It’s your ultimate tool for DEF CON Access Everything.

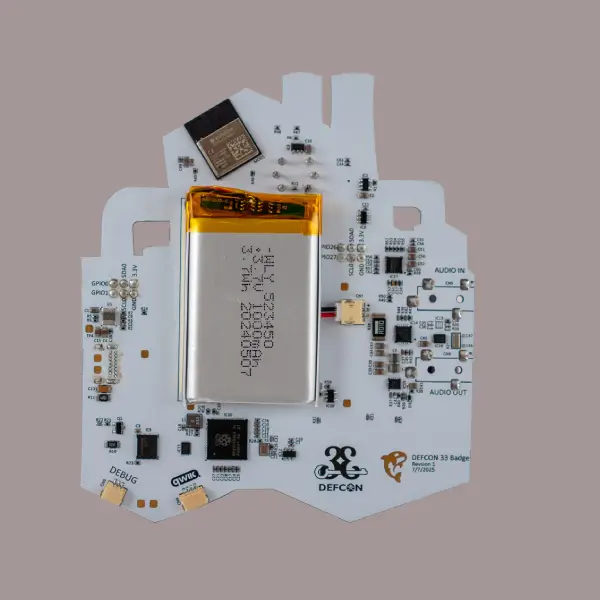

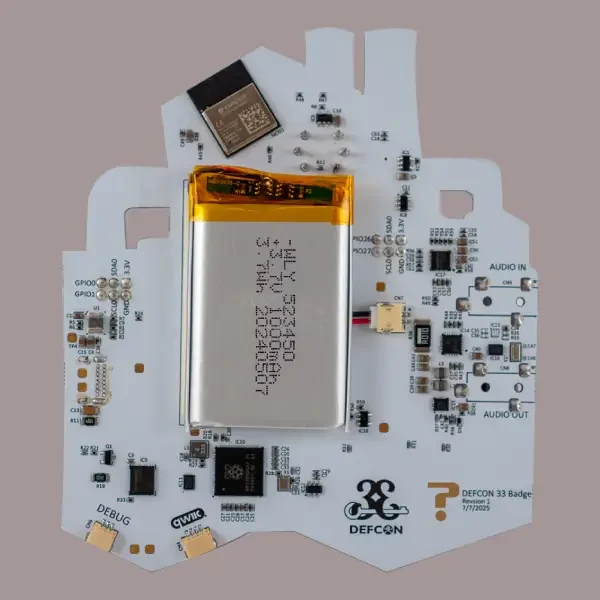

At the heart of the ICS Village Badge is a RP2350A Microcontroller

  Features

Key Features:

  • BME688 – First gas sensor with AI and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors
  • Alcohol Sensor (MQ-3)
  • ESP 32 WiFi C6
  • XYZ Position sensor
  • Infrared Receive and Transmit
  • Powered by Raspberry Pi RP2350A with SRAM and Flash
  • Speaker
  • 320×240 Full Color Screen design
  • 5x Buttons
  • 5x Full color LEDs
  • Real Time Clock (RTC)
  • Compatible with FREE-WILI I2C applications
  • FREE-WILi GUI Application support

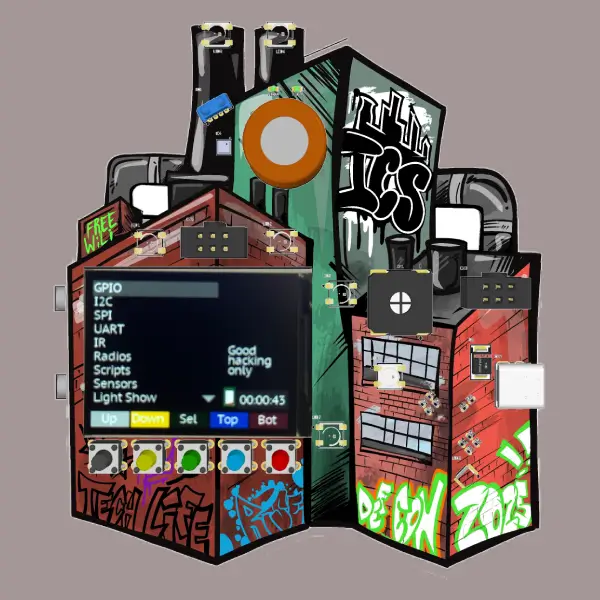

  • Full Color PCB by local Detroit artist Kyle Irving
  • USB terminal for I2C / SAO sensor interfacing
  • I2C Expansion configured as DEFCON SAO
  • 1000 ma Lithium ION battery with integrated charger

  Software Features

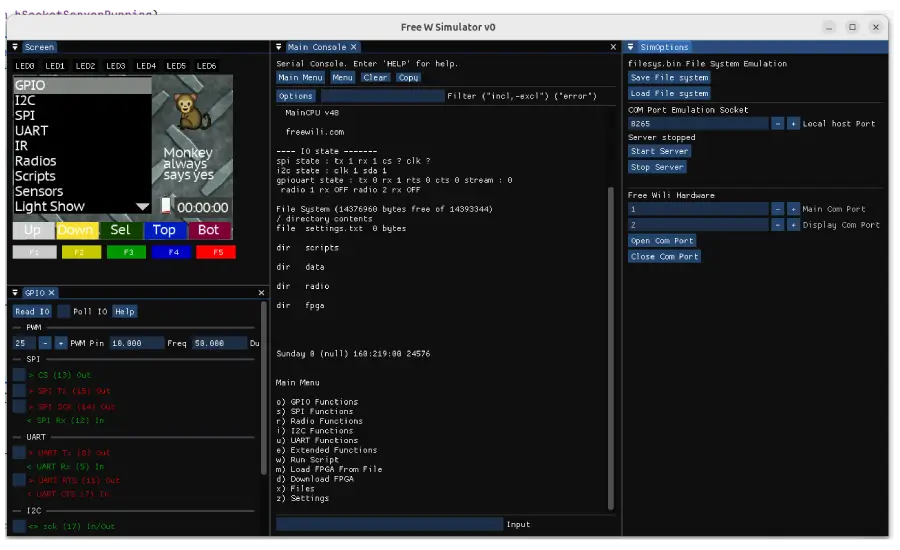

  • Works with FREE-WILi GUI
  • WiFi interface for ESP32 with Websocket interface to FREE-WILi GUI
  • Fuzzer
  • USB Serial console API to control from host PC without installing any software
  • WASM (webassembly) scripting engine with examples for C/C++, Rust, Zig and Tiny Go
  • Host API Python software
  • FAT File system
  • WASM API to control all device features
  • GUI Software with custom panels and graphical controls
  • Integrated sounds and images in ROM for enhancing user apps
  • Numbers To Speech feature to speak numbers
  • File formats compatible with existing market devices
  • Standard USB boot-loader for firmware updates
  • Raspberry Pi Pico (RP2350) Open Micro Platform for specific applications or custom code with C/C++, Micro-python or Circuit Python
  • Open source github software for updates
