FREE-WILi

  Use Cases

  I2C USB interface
  SPI USB interface
  UART USB interface
  USB attached screen and buttons
  Uart based protocol tool support
  TPMS fuzzer or simulator
  Keyless Entry simulator/monitor
  Cybersecurity penetration testing
  Development platform that is 80% done
  Learning platform for Embedded Systems

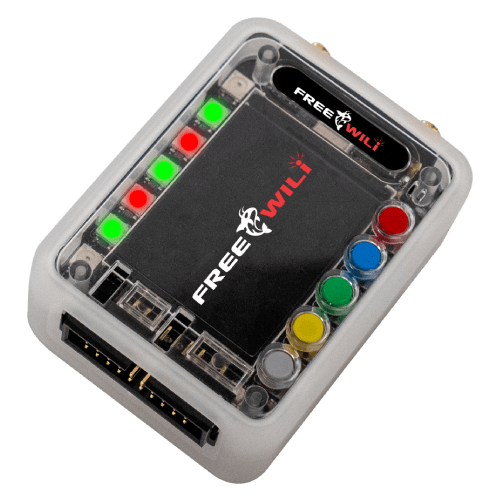

Free_WiLi

  Radio Versions

Choose the radio configuration that fits your project needs:

  •    Black: Two CC1101 Sub GHz radios with programmable filter ranges for 300-348, 387-464, and 779-928 MHz bands.
  •    Red: Two CC1352P7 MCUs with Sub GHz and 2.4 GHz radios, supporting 6LoWPAN, Amazon Sidewalk, IEEE 802.15.4, MIOTY, Proprietary 2.4 GHz, Thread, Wi-SUN NWP, Wireless M-Bus, and Zigbee.
  •    Blue: No radio for lower-cost applications or environments where radios are not permitted.

  Features

  SPI, I2C, PIO, and UART available on GPIO
  3 USB interfaces (Integrated HUB with 2 FS, 1 HS) for communication and power
  11 GPIO Programmable voltage level for 1.1 to 5.5V with 24ma@3V or 32ma @5v (sn74lxc1t45)
  2 GPIO for I2C voltage level between 0.9V to 5.5V with software enabled 10K pulls (PCA9517)
  GPIO front end includes ICE40UP5k FPGA with 8MByte SRAM and High Speed USB (FT232H)
  Two SMA connectors for antenna for longer range
  320 x 240 Color Display
  5 User configurable buttons
  7 Full color LEDs
  IR transmitter and receiver
  Digital Speaker and Microphone
  Raspberry Pi Pico (RP2040) Open Micro Platform for specific applications or custom code
  Orca modules plug into GPIO header allows expansion for specific use cases
  IO App firmware allows exercising all IO, USB Host API and Standalone scripting
  16 Mbyte x 2 on board storage (22 MByte usable)
  1000 ma Lithium ION battery with integrated charger
  Real Time Clock (RTC)
Accelerometer

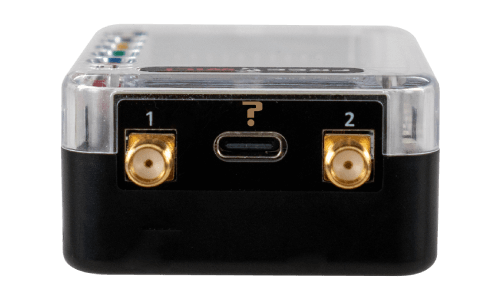

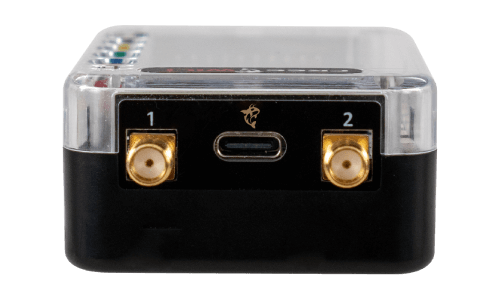

  Radio Versions

FREE-WILi currently has one radio option:

Black :

Black contains two CC1101 Sub Ghz Radios with programmable filter ranges for 300-348, 387-464, 779-928 bands.

radio-versions

  Why Choose FREE-WILi?

FREE-WILi is an all-encompassing tool designed to meet your embedded development challenges head-on. Whether you’re a professional developer or a hobbyist, FREE-WILi provides the versatility, functionality, and ease of use you need to bring your projects to life.
