Maestro Debug Orca

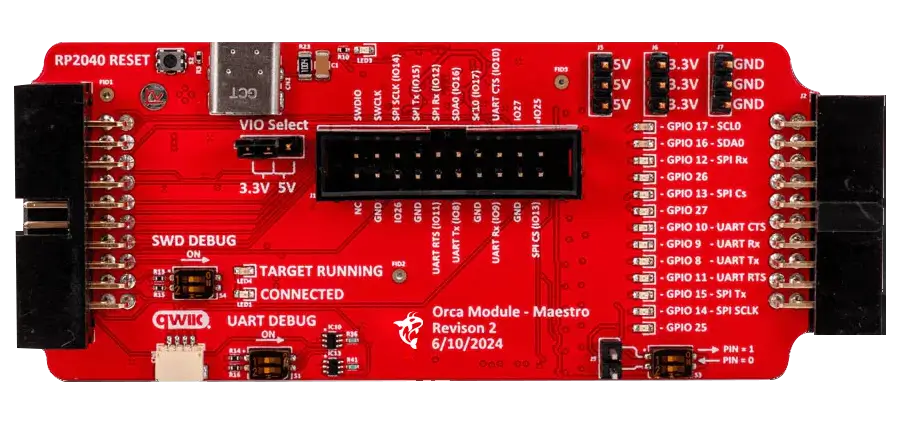

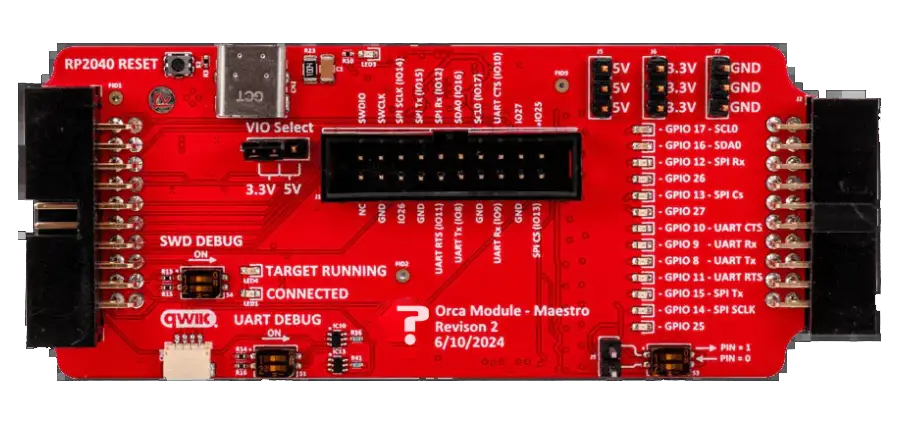

The Maestro Orca is a troubleshooting and development tool for FREE-WiLi. The board consists of a USB debugger for the RP2040 main controller and IO test points.
Features
Integrated Raspberry Pi Debug Probe
Pico scope Logic Analyzer Connector
LEDs which display IO status
6x Serial RGB Color Programmable LED
Switches to test GPIOs that are inputs
Prototyping connectors for I2C (QWIIC) and SDCARDs.
Jumper for selecting or injecting IO voltage
Connector for plugging in additional Orca modules
