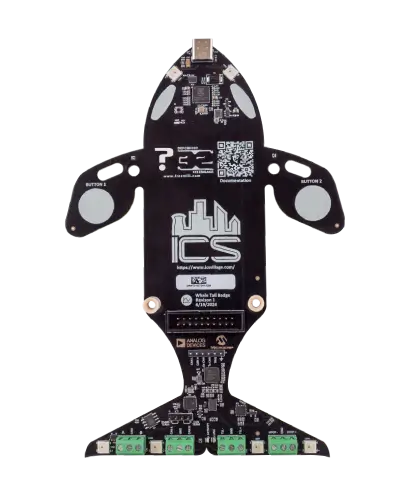

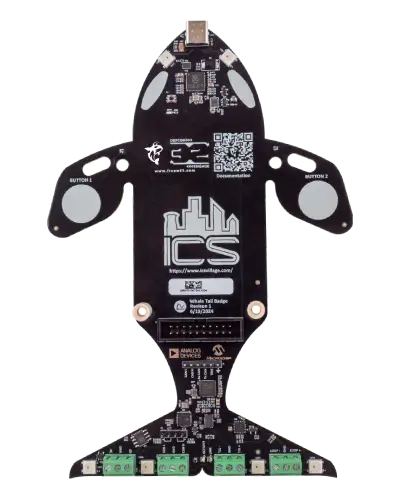

The Free-WiLi Whale Tail Badge is a groundbreaking device designed to highlight digital protocols commonly used in industrial settings. This innovative badge features cutting-edge technologies like CAN FD and 10BASE-T1L, making it a versatile tool for both learning and application in industrial and automotive environments.

At the heart of the Whale Tail Badge is a RP2040 Microcontroller

Features

1x 10BASE-T1L Interface: Based on Analog Devices ADIN1110 MAC/PHY Utilizing a single twisted pair for lightweight, long-distance data transmission, achieving speeds up to 10 Mbps as per the 802.3cg IEEE standard. This interface enables you to use the badge as a USB to 10BASE-T1L interface.
1x CAN FD Interface: Based on Microchip MCP2518FD binary compatible with CANIS lab CANPICO
RS485 Modbus Interface
6x Serial RGB Color Programmable LED
2x Capacitive Touch Switch Button Sensors
Raspberry Pi Pico (RP2040) Microcontroller: An open microcontroller with a USB interface for seamless integration and programming.
4-20mA Sensor Simulator: Simulate industrial sensor outputs for testing and development.
Expansion Plug for Free-WiLi Device: Allows adding display, power, and wireless modules, learn more at FREE-WILi
